Roller Shutter Support Next-Gen Ranger
Tax included. Shipping calculated at checkout.
ⓘ
The factory shutter on your Ranger looks like a solid mounting point, but the channel is only rated to 75kg driving and 150kg stationary. A rooftop tent with two people in it is past that before you’ve unpacked the swag.

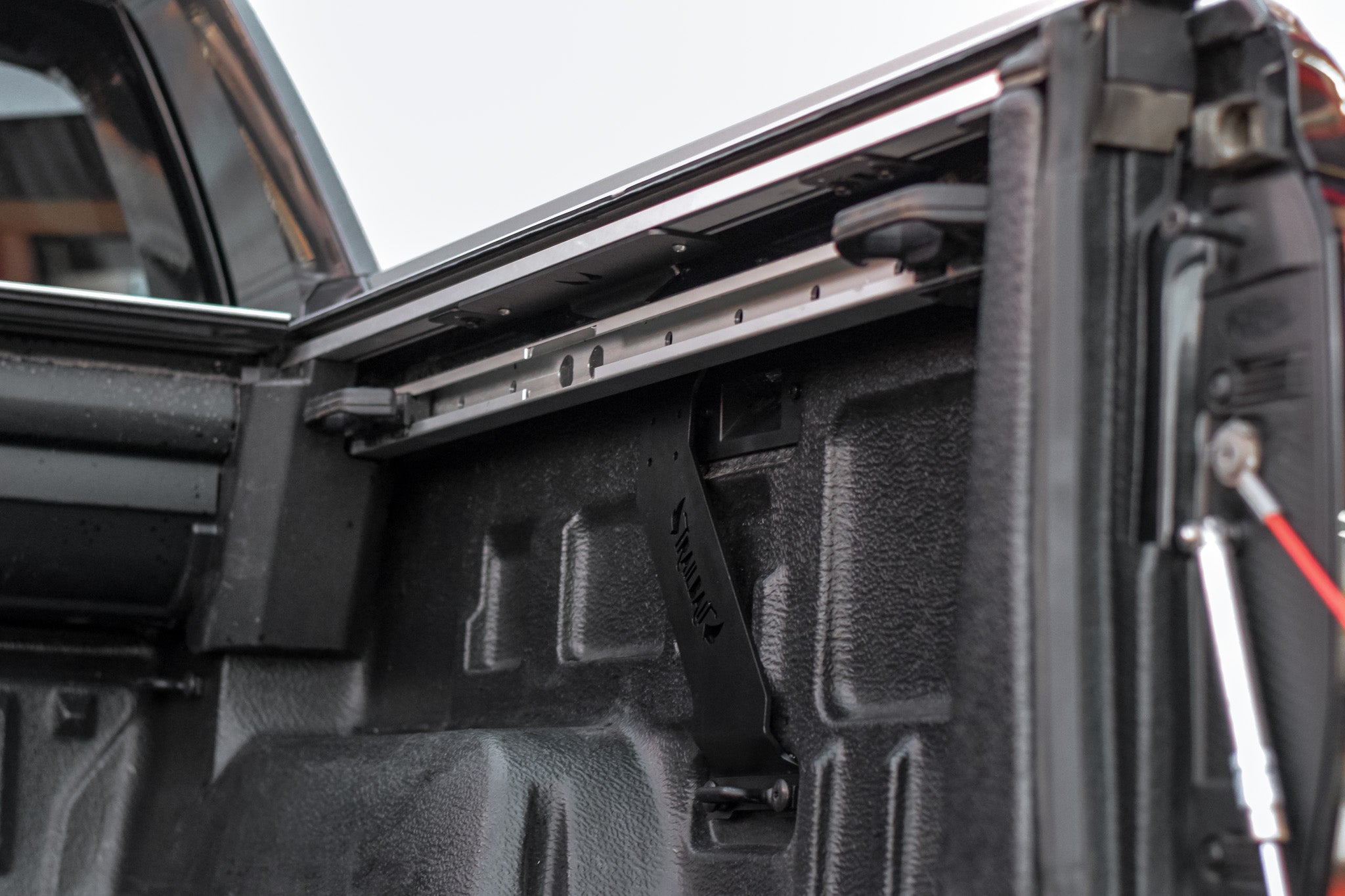

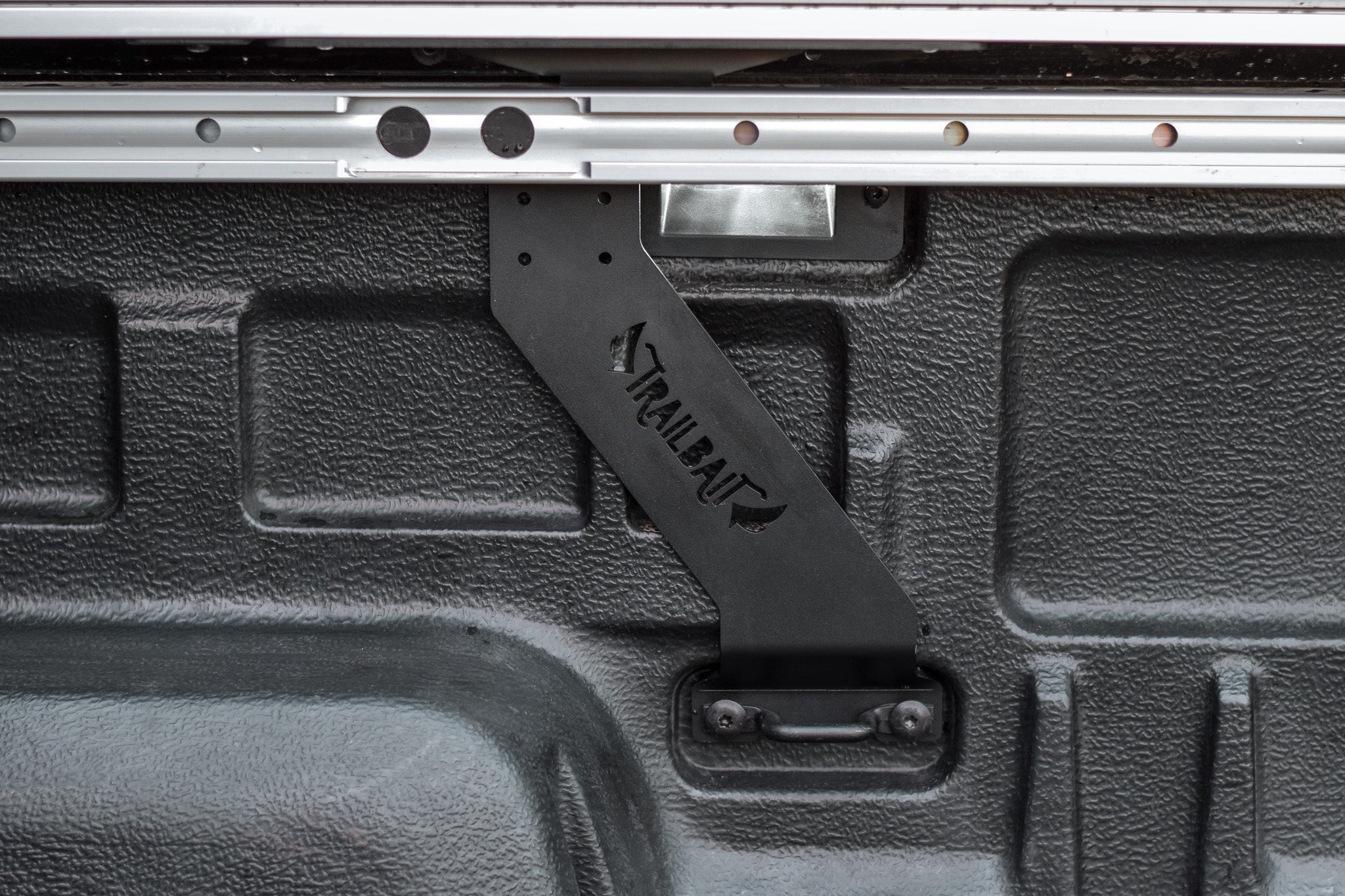

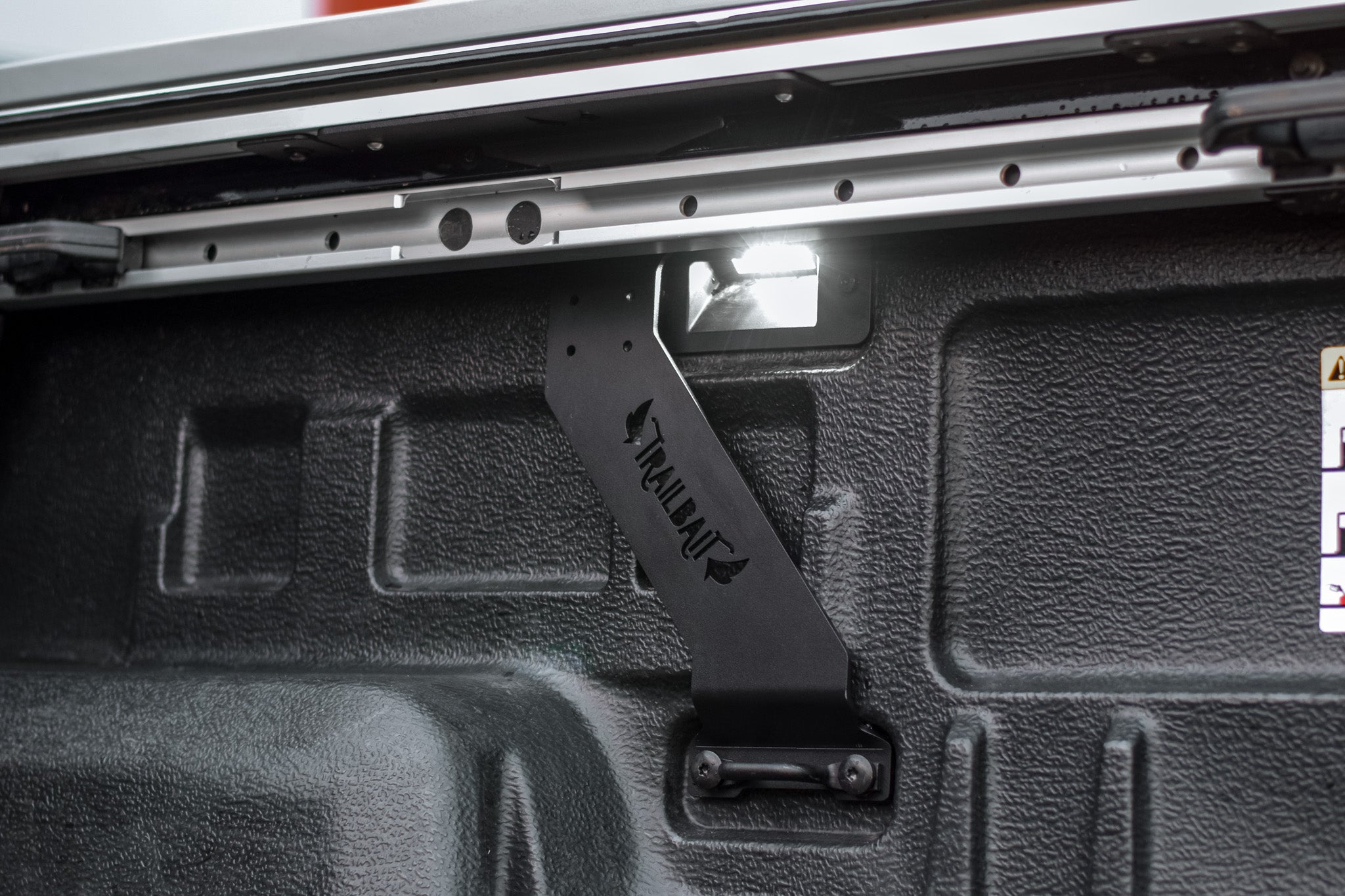

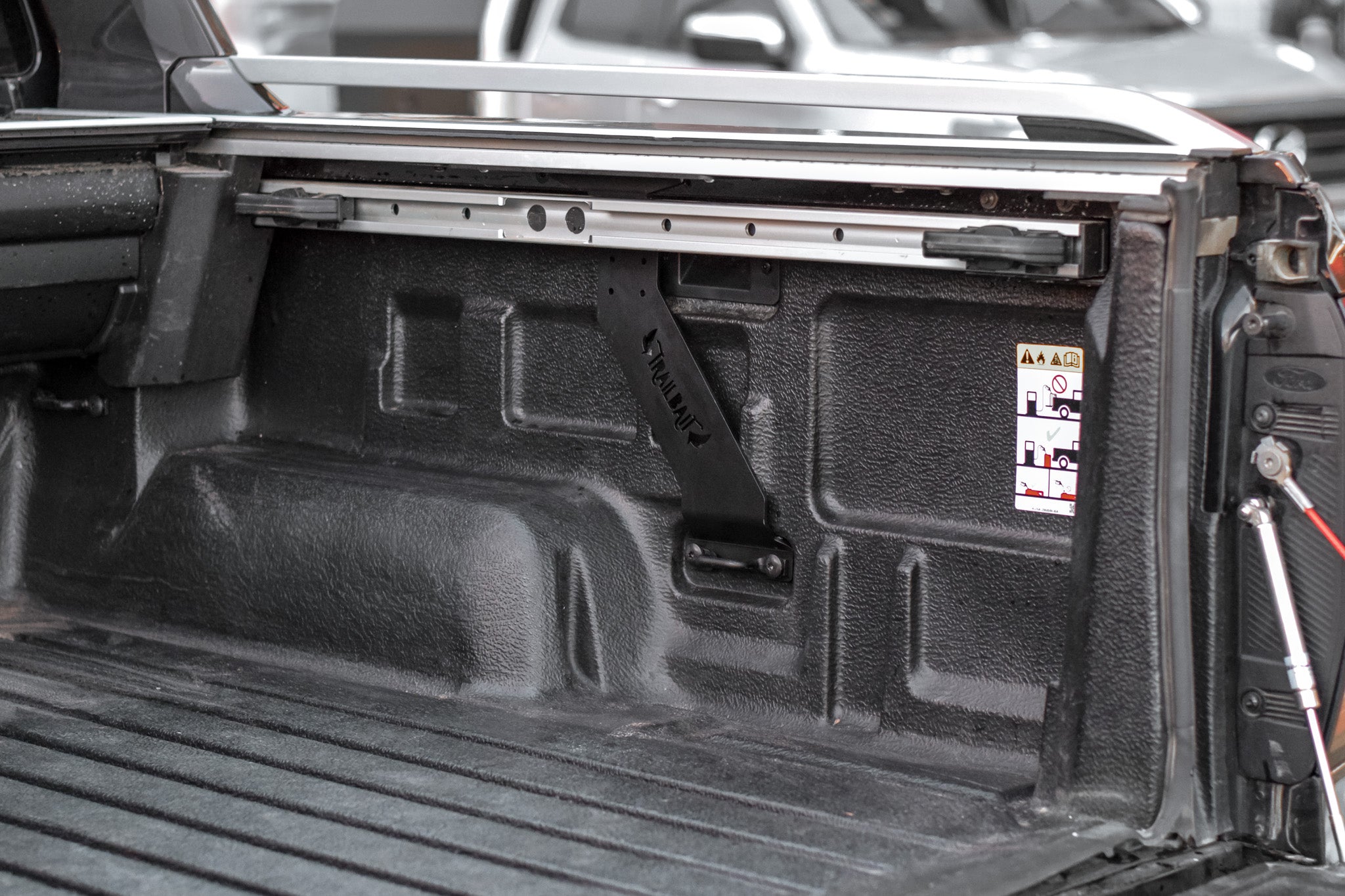

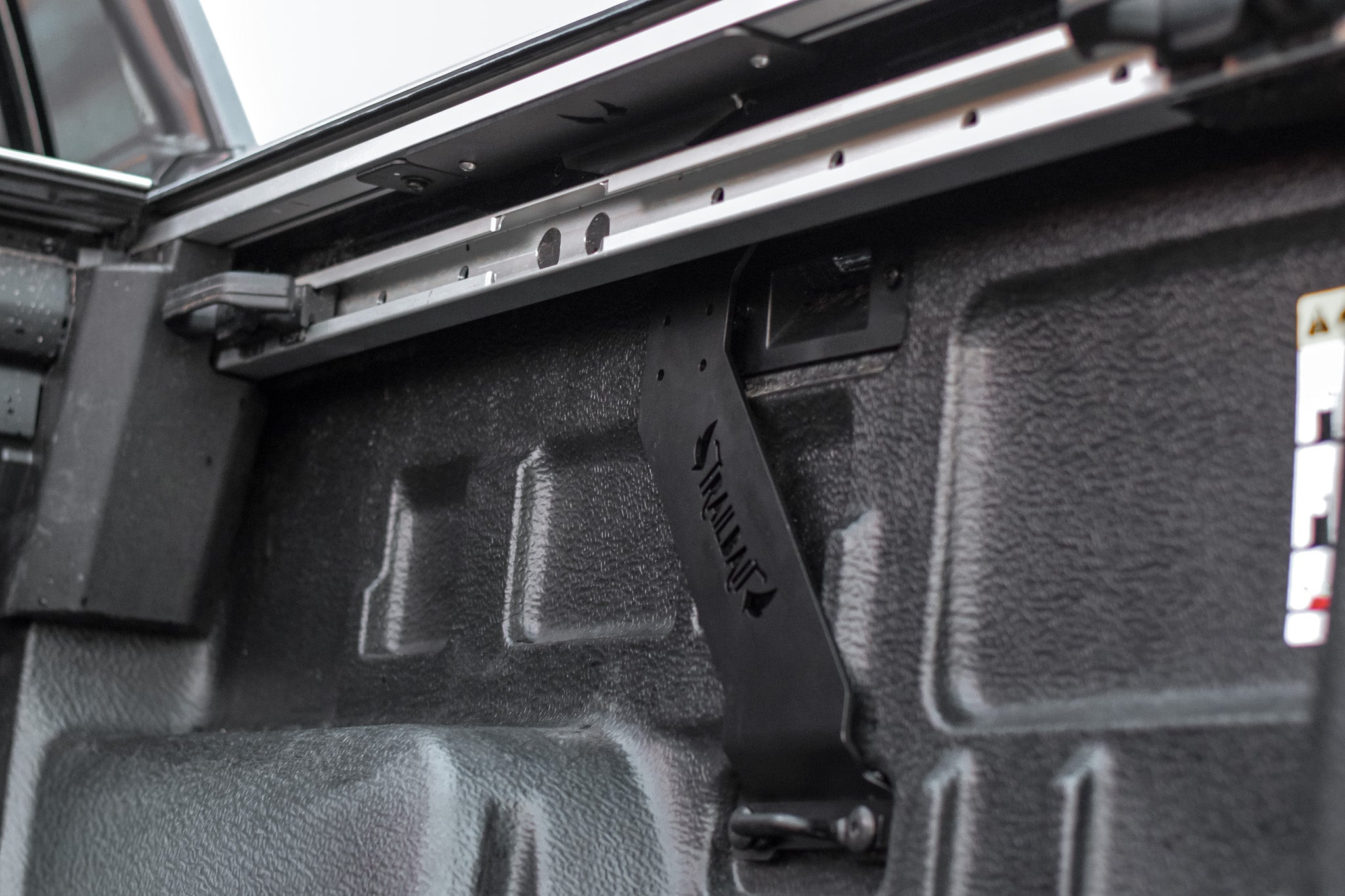

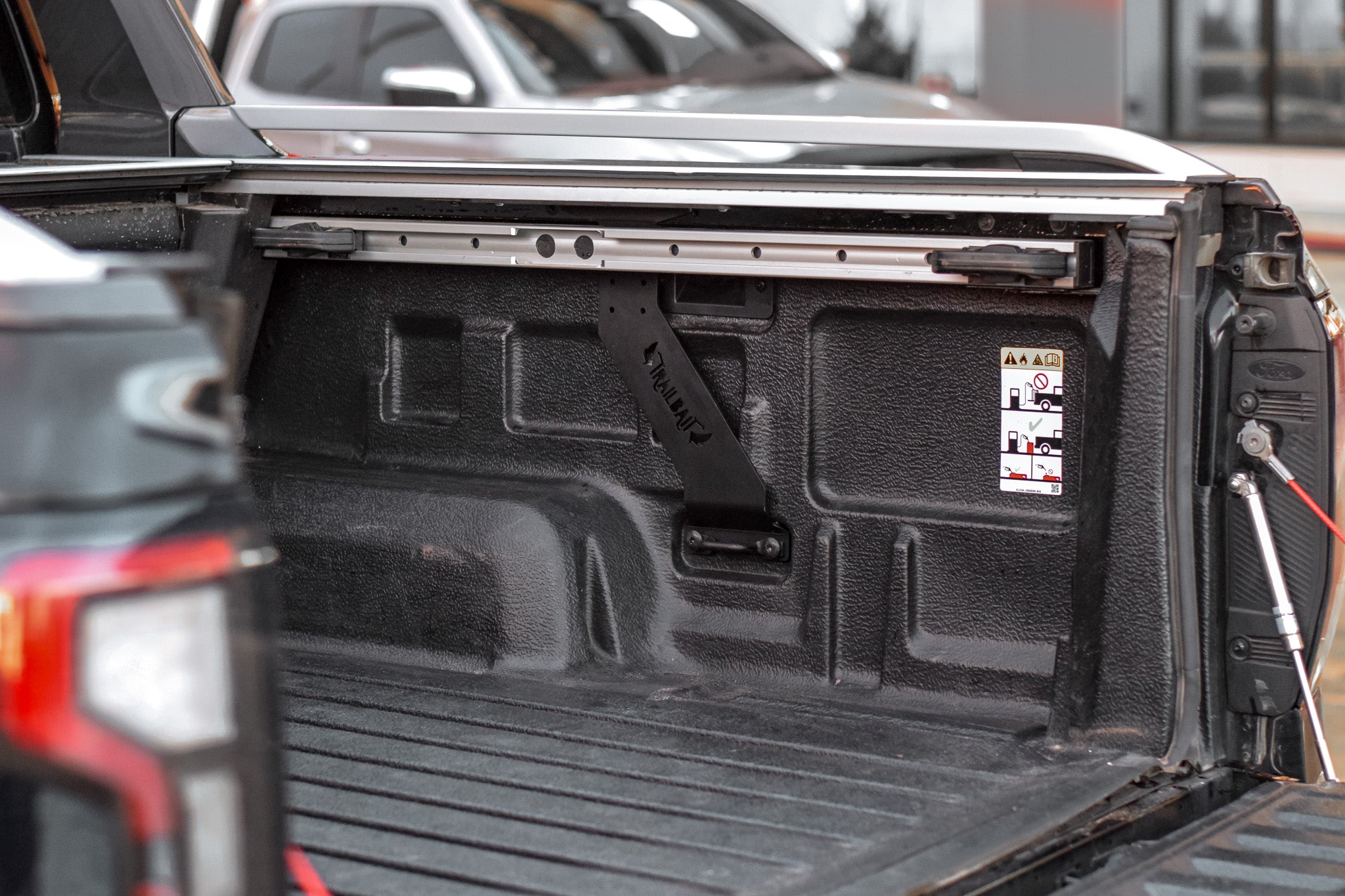

TrailBait Roller Shutter Supports fix the weak link. They tie the shutter channel back into the tub structure, lifting the rating to 200kg dynamic (driving) and 400kg static (parked). That is more than two and a half times the factory figure.
The design is deliberately slimline. Every fixing goes through a factory hole, nothing sits above the shutter line, and the shutter lid runs exactly as it did before. No drilling, no cutting, no mess.
Fitting takes around 30 minutes with basic hand tools. Bolts, hardware and step-by-step instructions are in the box.
| Factory channel | With TrailBait Supports | |
|---|---|---|
| Dynamic (driving) | 75kg | 200kg |
| Static (parked) | 150kg | 400kg |
Key features
- Lifts channel rating from 75/150kg to 200kg dynamic / 400kg static

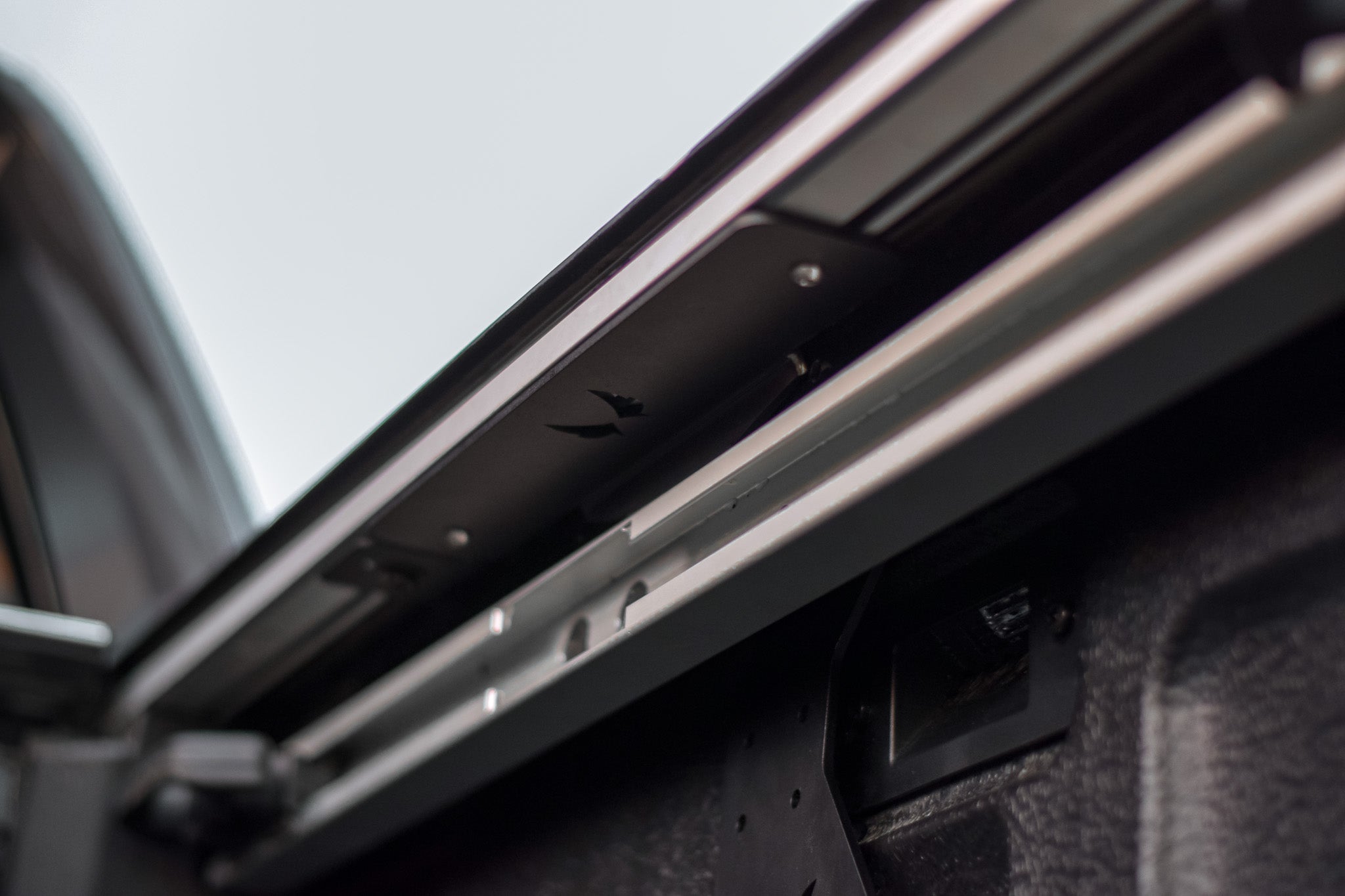

- Slimline profile, sits flush with the shutter channel
- Uses all factory holes, no drilling required
- 30 minute install with basic hand tools
- Bolts, hardware and instructions included
- Made for TrailBait Rear Cross Bars and other channel-mounted accessories
Fitment
- Ford Ranger Next-Gen (2022 on) with factory roller shutter: Raptor, Wildtrak, Wildtrak X, Platinum
- Also suits RealTruck EVO roller shutters
- Sold as a pair
