26.5-inch LED Light Bar

The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.

To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.

All RAPTOR lamps come complete stainless steel pivot mounting brackets and stainless steel fixings. As with all Raptor products, the light bars are manufactured in Australia and covered by a 5-year warranty for total peace of mind.

120W Raptor Light Bar Specifications
Wattage	120 Watts
Light Source	24 x 5w LED's
Light Output – Raw	14,400 Lumens
Light Output – Effective	11,500 Lumens
Voltage	9-36V
Current Draw	8.9A @ 13.5V
Operating Temperature	-40 to 80 Deg C
Waterproof Rating	IP67
Connector Type Plug	2 Pin Heavy Duty Deutsch
Housing	Aluminium
Outer Lens Construction	Polycarbonate
Bracket	Stainless Steel
Colour Temperature	4000K or 5700K
Lifespan	50,000 Hours
Dimensions	679 x 45 x 73mm
Net Weight	2.3kg
Mounting Suitable	Side Mounts
Beams Available	Combo or Spread
Warranty	5 Years

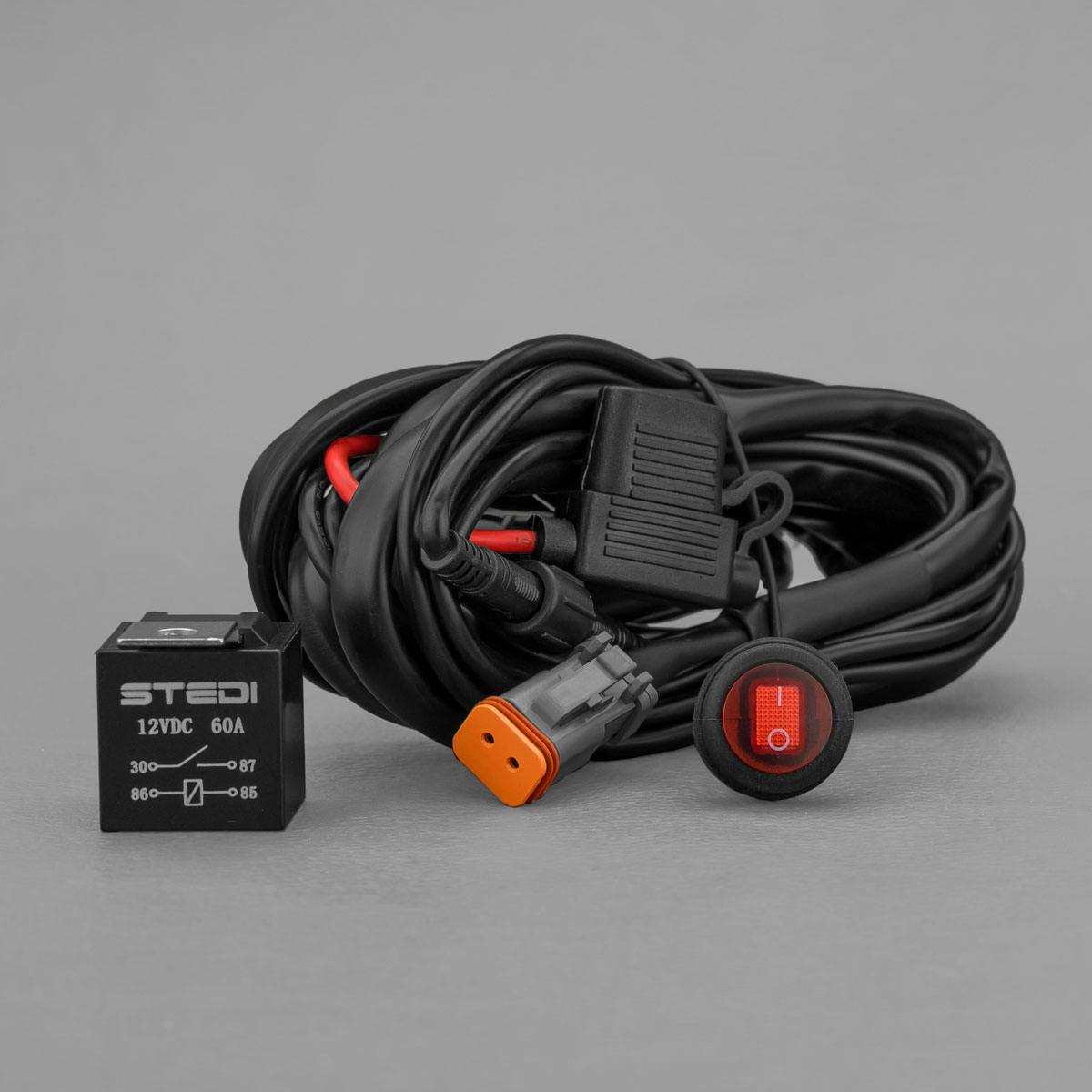

Harness	Harness not included, purchased separately. Harness to suit: DV12H
Part Number
Combo, 5700K	RAP120LBv2
Spread, 5700K	RAP120LBSv2
Combo, 4000K	RAP120LB4v2
Spread, 4000K	RAP120LB4Sv2
